Hobart D300 Third Speed Disengaging Under Load
A Hobart D300 was reported to drop out of third speed during heavy dough mixing. The useful first distinction is whether the selector moves out of position or the motor stops while the selector stays engaged.
Reviewed · KONGRA LLC
- Equipment
- Hobart D300, ML 104421; 30-quart planetary mixer.
- Reported symptom
- Third speed intermittently disengages under a large, heavy dough load.
- First repair stage
- Inspect the accessible selector and detent mechanism; replace verified worn components and adjust.
- Current boundary
- Transmission not opened; internal gear or fork damage has not been confirmed.
Third speed is not a heavy-dough setting
Hobart's D300 operating instructions assign the high-speed setting to light mixing tasks. Heavy mixtures belong at the lower operating speed specified for the recipe and attachment. The instructions also require stopping the mixer before changing speeds.
That operating check is part of diagnosis, not an assumption that use alone caused damage. A mixer that has developed poor selector retention still needs inspection. Repeating the same heavy batch at high speed is not a useful way to prove the fault.
Selector movement versus motor shutdown
In this case the report concerned intermittent loss of the selected speed. The assessment considered incomplete engagement or inadequate retention, beginning with the accessible external selector.
A different observation changes the repair path: if the lever remains in place while the motor stops, the electrical protective circuit and actual motor loading need attention. If the lever moves, the technician examines its retention, movement and engagement. Those two events should not be described as the same failure.
Why the repair was staged
The first proposed stage was external selector service, including inspection of the detent springs and balls, the accessible cam and related hardware. A worn cam was an additional possibility requiring verification. The transmission had not been opened, so worn gears, a damaged internal fork or a clutch failure were not established findings.
A staged scope gives the operator a defined decision point. After external service, the technician checks retention and operation using an appropriate load and speed. Continued disengagement or abnormal noise can justify a separately authorized internal examination. External adjustment cannot guarantee correction of hidden transmission damage.
Prepare for a useful mixer visit
Record the actual dough weight, hydration, hook or beater used, and the selected speed. Note whether the failure happens empty, with a light mixture, or only with heavy dough. Photograph the control positions without reaching into a running mechanism.
Model and ML number are needed to select documentation and parts. The original plate for this unit establishes ML 104421. Serial and customer details are kept out of the public photographs.
Equipment photographs

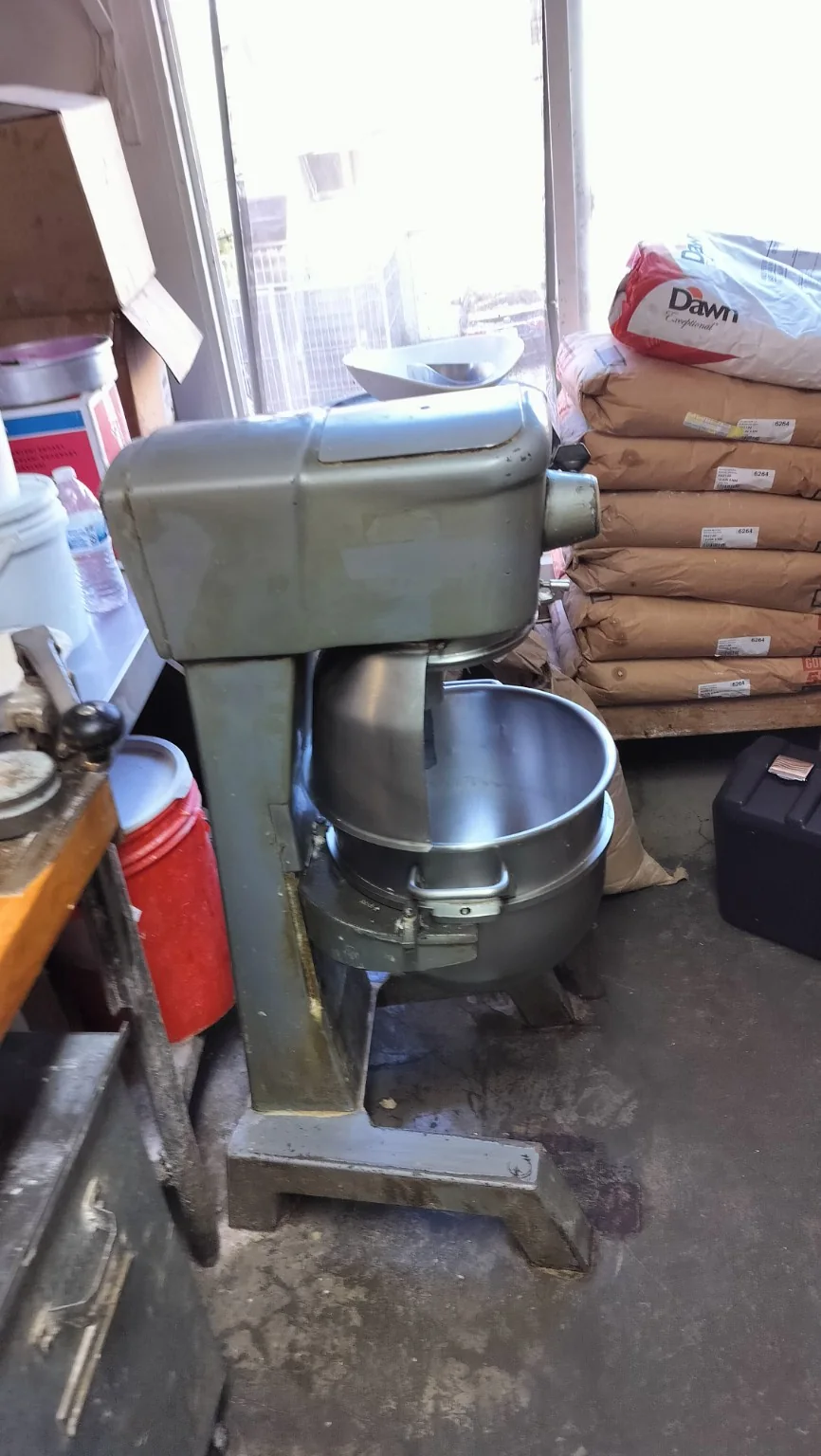

Original photograph of the 30-quart mixer discussed in the third-speed complaint.

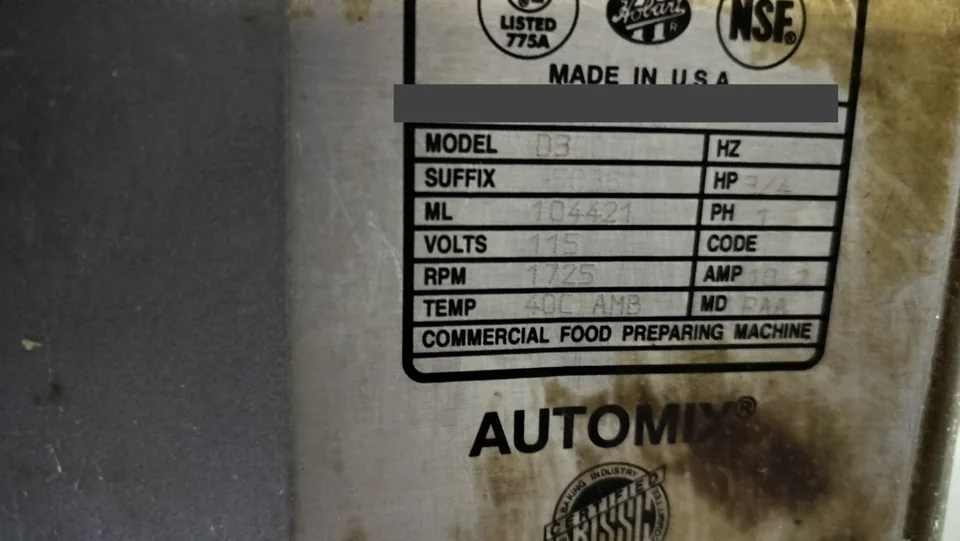

Original model plate; serial row redacted for publication.
Technical references
- Hobart D300 instructions, F-18816 Rev. A
Manufacturer-authored operating manual, hosted by a document mirror; explicitly covers ML 104421/104423. See changing speeds, mixer speeds and troubleshooting.
- Hobart D300 service documentation
Manufacturer service collection. Older versions and service bulletins must be matched to the actual controls; a parts diagram alone does not diagnose internal damage.
Arrange a model-specific diagnostic
Send model and ML, a short description of lever movement, and the recipe/load conditions. Do not hold a selector in place or defeat the guard to keep production running.
