Thermador PRD48WDSGU Left Display Keeps Rebooting
On some Thermador Pro Grand ranges with a steam oven, the auxiliary display can repeatedly show the startup sequence and restart. The loop may look like a failed screen, but the display is only one part of a network of control modules — replacing it by appearance can add cost without resolving the cause.
What the service bulletin covers
BSH service bulletin 58300000229769 describes a continuous auxiliary-display boot loop caused by a steam-module software issue on affected Pro ranges, including PRD48WDSGU/01. The bulletin distinguishes between installing the programmed steam module and updating/coding the connected modules with the manufacturer’s service system.
That bulletin is a starting point, not proof that every repeating display has the same cause. The exact model suffix, module version, programming state, supply behavior and communication path still have to agree with the appliance in front of the technician.
What KONGRA documented on this range
- Equipment
- Thermador PRD48WDSGU/01 Pro Grand range with steam oven
- Reported symptom
- The left auxiliary display repeatedly entered the startup sequence while the other display remained active
- Observed history
- A new steam module had already been installed, but the boot loop remained
- Work documented

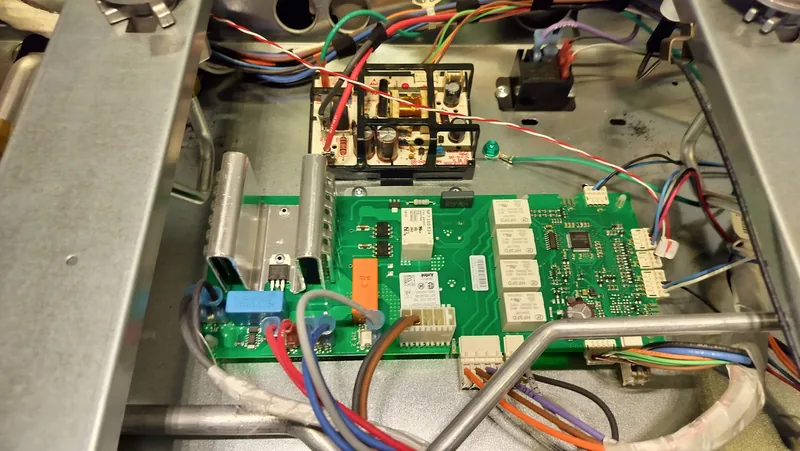

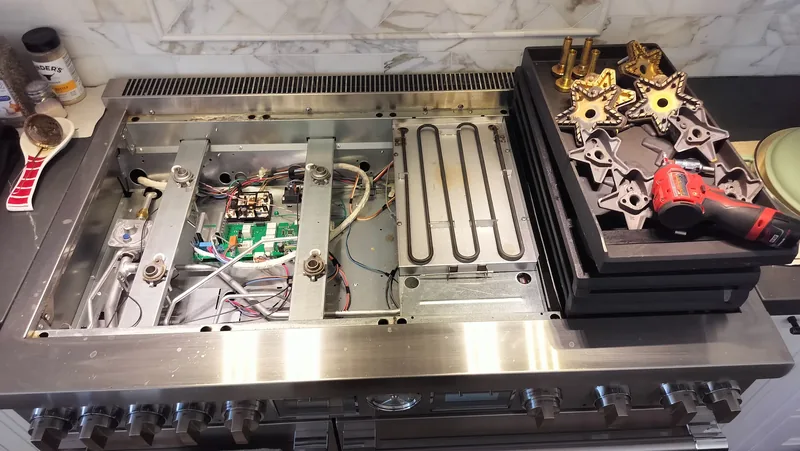

- Controlled access to the electronics, documentation of the control and steam-module area, inspection of connectors and the 24-volt protection path
- Status
- Diagnostic case in progress in the available record. A completed repair and final operational test are not claimed.
This distinction matters. When the bulletin’s first-line remedy has already been attempted, the next decision should be based on the exact programmed part, the software and coding state, stable power under load, connector condition and module communication — not another round of unverified parts replacement.
What to record
- the full model number, including the suffix after the slash
- which display restarts, and whether the other display remains usable
- the exact screen sequence, or a short video
- whether the symptom began after service, a power interruption or a software/calibration event
- part numbers and programming information for any module already replaced
Turn the range off and arrange service if the display loop is accompanied by overheating, smoke, a burning smell, gas odor or unsafe operation. Internal electronic and gas-system work belongs with a qualified technician.
