Kitchen Exhaust Duct Connection Repaired and Sealed in the Attic

The service correspondence states that the attic kitchen exhaust duct connection had been repaired and sealed, and includes the completed-work photographs. The customer acknowledged the repair. This supports a specific account of the work performed, with the photographs associated directly with that job.

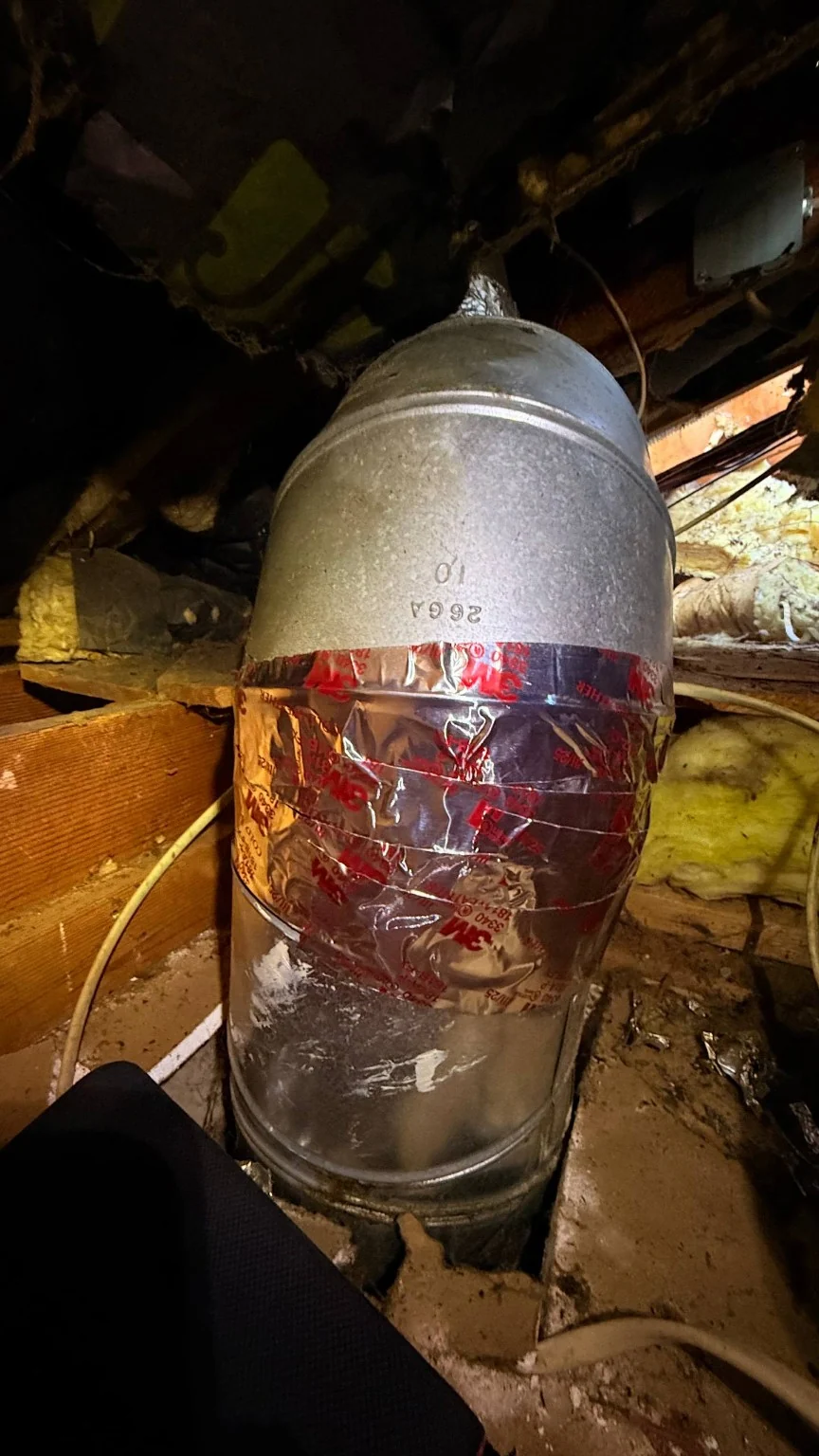

The images show a metal elbow and vertical duct connection inside the attic, with foil sealing visible around the joined areas. They document the condition of that connection after the reported work. The record does not identify the hood brand or model, so the case is not assigned to a premium brand simply because similar equipment appears in another discussion.

A hood that does not start and a hood that runs with poor extraction begin with different observations. In the first situation, control response and blower operation need evaluation. In the second, the accessible air path and installation also matter. A duct connection can therefore be relevant to the service visit without proving that a motor or control board has failed.

For this job, the confirmed scope is the connection repair and sealing. No blower replacement, control repair, filter installation or roof-flashing work is established in the completed-work record. A later request concerning filters was a separate item; it is not included as completed work in this case.

Both selected images show the same completed stage. The different angles help explain the physical location and joined sections, but do not create a before-and-after comparison. The public photographs omit the customer’s identity, address and invoice details.

A photograph of a sealed joint does not measure extraction or establish the performance of the complete system. The available record does not contain an airflow reading, a final operating-test log or a determination of code compliance. Those conclusions would require their own observations and appropriate assessment.

Send an overall hood photograph, the complete model and a description of the symptom. State whether the lights and blower respond, which speeds work and whether the concern is no operation, noise or poor capture. If a remote blower is fitted, include its separate label where safely accessible.

Mention the attic or ceiling access and any recent installation or building work. KONGRA reviews the equipment and access before confirming the scope in San Jose, Los Gatos, Saratoga, Santa Clara and nearby Bay Area communities. After approved work, the service record should distinguish the repair performed from any measured operating result.
