MoTak Commercial Oven Not Reaching Temperature?
A commercial convection oven can look like it only needs calibration when the real problem is the thermostat or another part of the heating system. This field note explains how KONGRA separates a normal temperature offset from a control failure.
KONGRA LLC field case ·

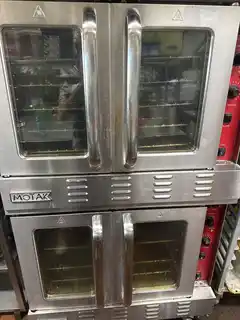

The service request involved a double-deck MoTak commercial convection oven that heats but does not reach the selected temperature. The initial description was that it “just needs calibration.” In practice, that is not enough information to justify turning an adjustment screw.
The diagnostic question is whether the operating thermostat is healthy and merely offset, or whether it is switching the heat incorrectly. If the oven stops calling for heat while the measured chamber temperature is still far below the set point, the thermostat or its capillary sensing system becomes a primary suspect. If the heat remains commanded on and the oven still cannot climb, the fault is elsewhere in the heating system.
Calibration corrects a small, repeatable error on a working control. It does not repair a thermostat that cuts out at the wrong temperature or behaves inconsistently.
When “Calibration” Is Not the Real Problem
Commercial ovens naturally cycle above and below the set point. A technician does not judge calibration from a single thermometer reading. The oven is allowed to stabilize, several heating cycles are observed, and the average chamber temperature is compared with the control setting.
A modest and consistent offset may be correctable through the manufacturer’s calibration procedure. A large difference is different. If a thermostat opens the heating circuit too early, drifts between cycles, or cannot be brought into range with normal adjustment, repeated “calibration” only hides the underlying control problem.
That is why a quote for calibration alone should not replace diagnosis when the complaint is that the oven simply cannot achieve cooking temperature.
How a Commercial Oven Thermostat Controls Temperature
Many commercial convection ovens use a mechanical operating thermostat with a sensing bulb and capillary tube. As chamber temperature changes, the sensing system causes the thermostat contacts to open and close, cycling the burner or electric heating circuit.
When the control is healthy, its switching behavior follows the temperature range closely enough that the oven averages near the selected set point. When the sensing system loses accuracy or the thermostat mechanism wears, the contacts may open too soon, stay closed too long, or switch inconsistently.
The symptom that matters is not just “the knob says 400°F.” What matters is the measured chamber temperature at the moment the heat is energized and de-energized.
Thermostat Failure vs. Heating-System Failure
If the oven reaches a low temperature and the heat indicator or burner cycles off even though the set point is much higher, the operating thermostat deserves close attention. That pattern is consistent with a control that is sensing or switching incorrectly.
If the thermostat continues to call for heat but temperature plateaus, replacing the thermostat may accomplish nothing. On a gas oven, burner performance and gas pressure may need to be evaluated. On an electric oven, heating elements, contactors and supply conditions can produce the same “won’t reach temperature” complaint.
Airflow also matters. A failed or weak convection fan can change heat transfer through the cavity, while a high-limit control that opens unexpectedly can interrupt heat independently of the normal thermostat.
What We Check During Diagnosis
- Actual chamber temperature compared with the thermostat setting over multiple heating cycles
- Whether the heat command cuts off early or remains active while temperature stalls
- Thermostat response and capillary-sensing condition where applicable
- Convection fan operation and airflow through the cooking chamber
- Gas burner and pressure-related performance on gas models, or elements and contactors on electric models
- High-limit and related control behavior when the symptom points beyond the operating thermostat
The exact MoTak model and serial number should be confirmed from the rating plate before ordering a thermostat or any other part. This public case note does not identify the customer or publish an unconfirmed final repair outcome.
Commercial Oven Repair in San Jose & the Bay Area
KONGRA provides commercial oven diagnostics and repair for restaurants, bakeries, cafés and other food-service operations in San Jose and nearby Santa Clara County communities. We work from the symptom and measured behavior first, then identify the repair scope.
For an oven that is heating but running cold, send the model and serial number, fuel type if known, the set temperature, the highest measured temperature, and whether the heat indicator or burner shuts off before the oven reaches the target.
MoTak Oven Temperature FAQ
Can calibration fix a large temperature error?
Usually not. Calibration is intended for a relatively small, repeatable offset on an otherwise healthy thermostat. A large error, unstable cycling or a unit that cuts heat off well below the set point calls for diagnosis before adjustment.
When should a commercial oven thermostat be replaced?
Replacement becomes the likely repair when the thermostat switches at the wrong temperature, the error is inconsistent, the sensing system is damaged, or proper adjustment cannot bring the control back into range.
What if the oven keeps calling for heat but still cannot reach temperature?
That points away from a simple thermostat calibration problem. Depending on the oven, the technician may need to evaluate burner performance or gas supply, electric heating elements and contactors, high-limit behavior, or airflow and fan operation.
Does KONGRA service double-deck MoTak commercial convection ovens?
Yes. KONGRA diagnoses commercial convection ovens and other restaurant equipment in San Jose and nearby Bay Area communities. Model and serial information should be confirmed from the rating plate before parts are ordered.
