WELLCOS WC-CLM-005 Powers On but Does Not Respond

The customer's report and supplied photographs establish the starting symptom and equipment identity. They do not establish that the PLC processor, HMI or drive has failed. A machine can remain powered while an operating condition or control path is not satisfied.

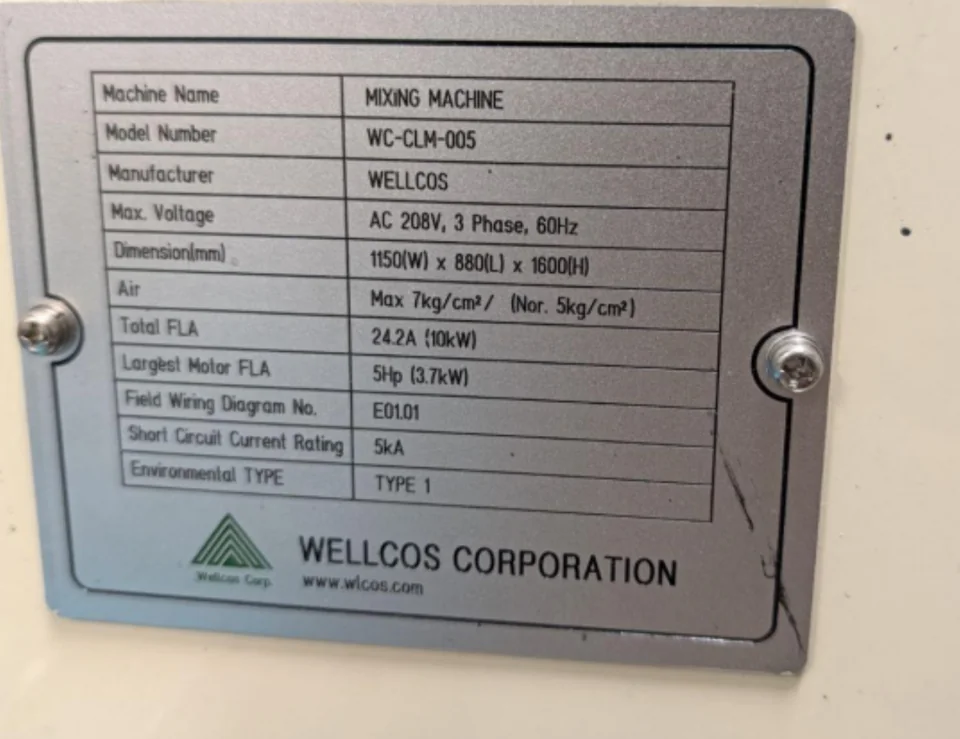

The nameplate also records pneumatic requirements and a machine wiring-diagram reference. Those are important service inputs. The model suffix does not establish vessel capacity, working load or process chemistry, and this article does not assign those specifications.

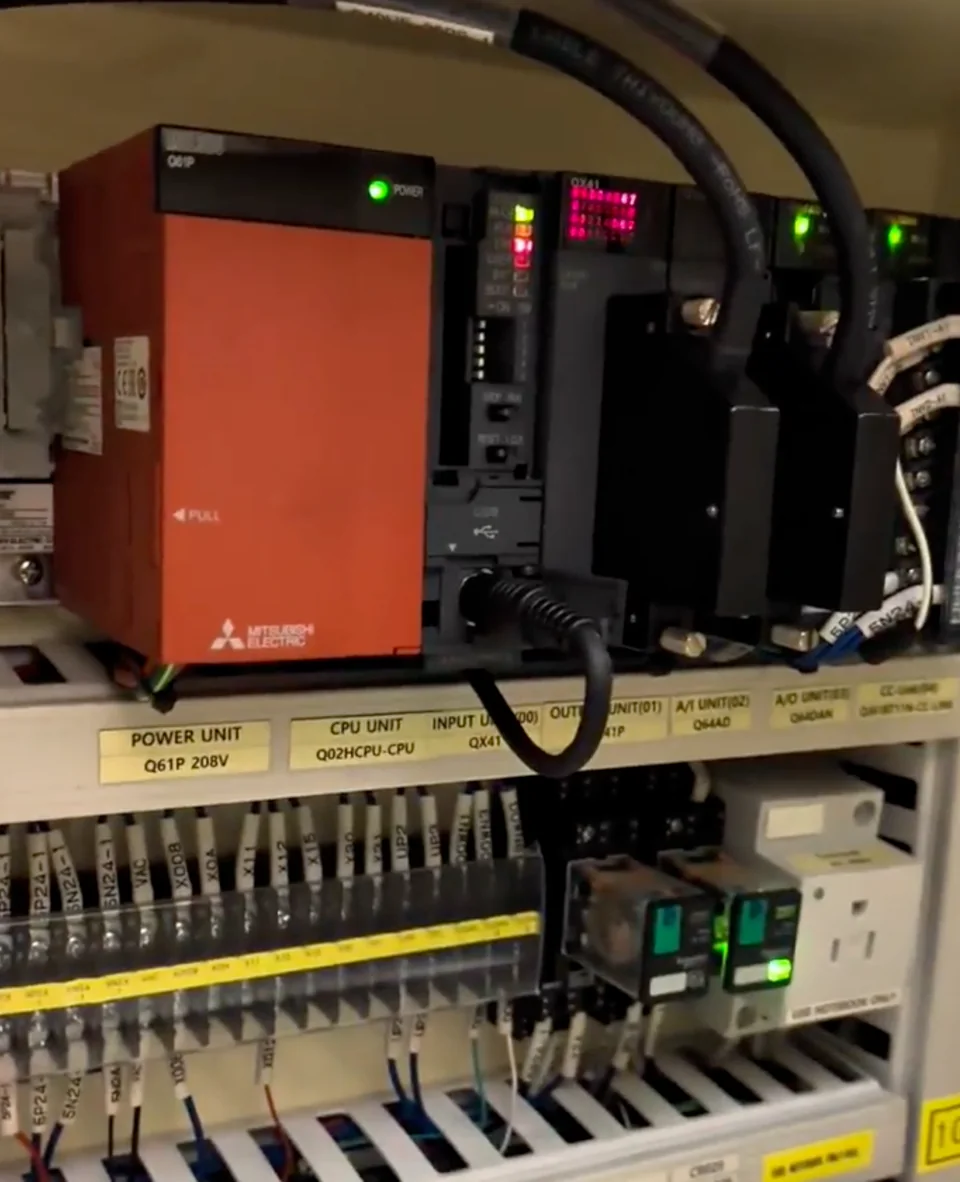

Mitsubishi's QCPU hardware and maintenance manual provides the framework for reading controller status, preserving error information and checking the installed system. That component guidance does not reveal the WELLCOS program, safety sequence or individual I/O assignments.

A practical diagnostic plan starts with equipment identification and existing drawings, then records controller and drive states before resets or changes. Permissives, control power, input/output states and communication can be compared with the machine's intended sequence. Individual output labels or an illuminated LED alone do not prove the failed component.

The full WC-CLM-005 service manual and its machine wiring diagram were not available in the reviewed record. That limits how specific a repair prescription can be. No PLC replacement, program modification or completed production test is claimed.

The next step is an authorized inspection with the correct drawings and access to existing backups where available. If a failed field device, connection, supply or component is established, the repair scope can identify the evidence and verification needed. Changes to PLC logic or safety functions require a separate, appropriately supported scope.

Include the exact model, electrical configuration, control/drive photographs, behavior before the failure and recent changes. Provide the operating sequence and the point where it stops. Keep proprietary process details and program backups in the private service exchange.

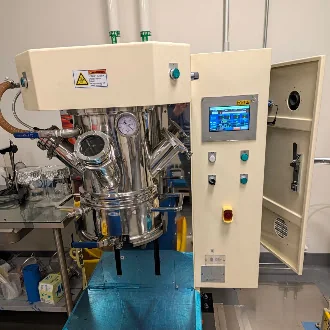

The photos below were supplied for the inquiry. They document the machine and cabinet, not a completed on-site repair. No customer identity or facility location is published.
