Viking VGSU161 Cooktop Restoration: Burners, Ignition and Downdraft

The restoration scope started with the condition of the whole cooktop

The early project notes called for disassembly, cleaning of internal and external components, attention to worn parts and seals, and gas-leak repair. That was the proposed scope. The later confirmation that the restoration was completed does not establish which individual seals or gas components were replaced.

One particularly important concern was the stainless surface. The technician described slight upward deformation around the burner mounting areas and warned that the panel might not return fully flat. That limitation belonged in the estimate before cosmetic work began. A polished appearance alone would not answer whether the surface and burner assemblies were properly supported.

Burner replacement and model-specific parts identification

The completed restoration included replacement of all burners, as confirmed by the technician. The available record does not identify a final purchased part number for each burner component, so it should not be read as a universal replacement-parts list.

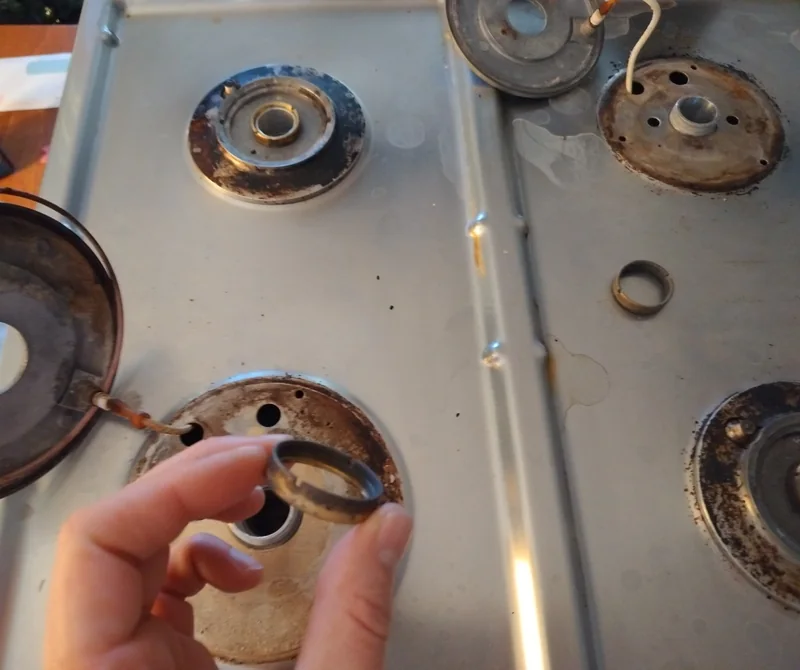

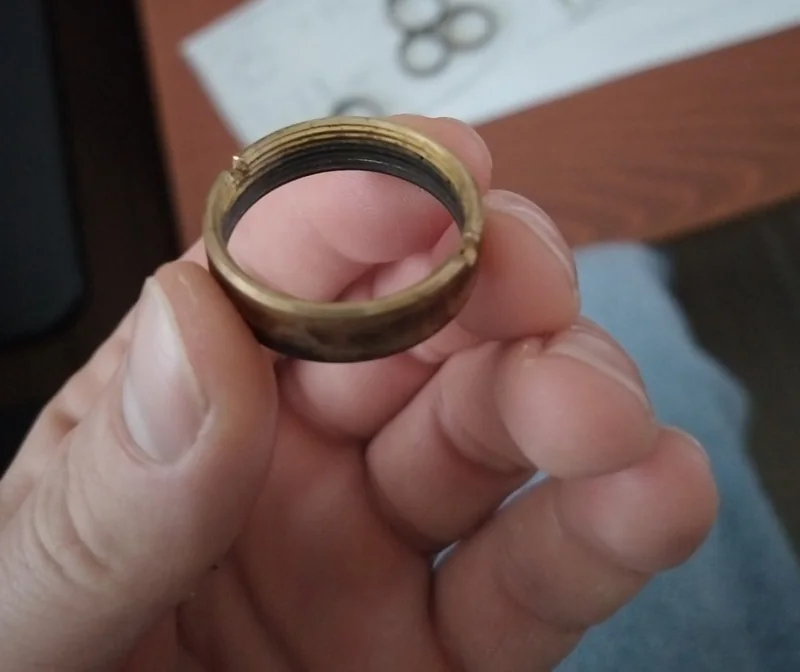

The teardown photographs show the burner bases lifted from the stainless surface, with ignition electrodes and wires visible. A threaded retaining ring is held for inspection. These smaller components and the deposits around the mounting areas were part of the disassembly work behind the restoration.

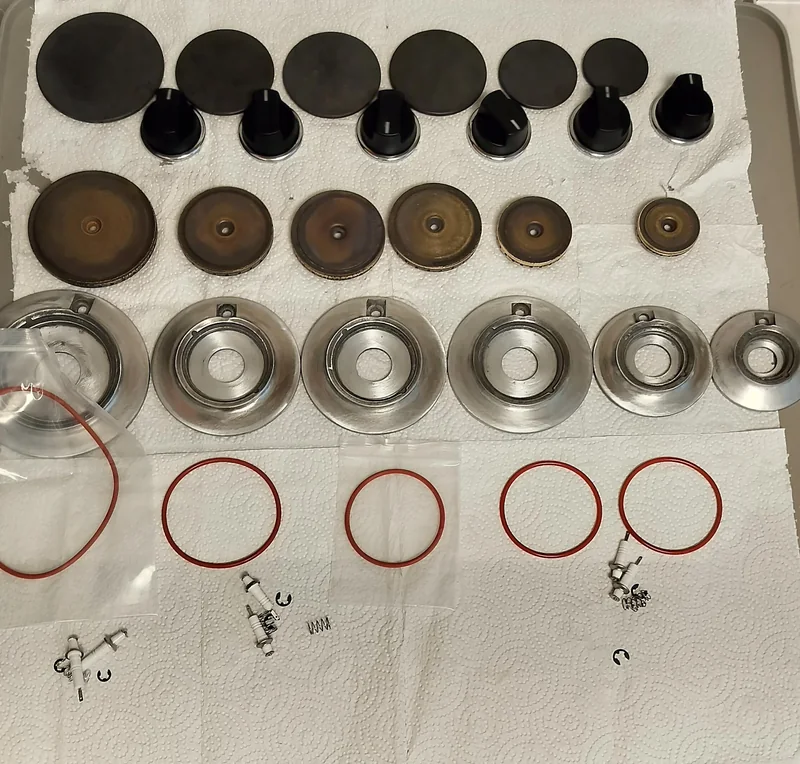

A separate workbench photograph shows the burner caps, knobs, brass-colored heads and silver bases arranged in rows, alongside orange seals and ignition components. It gives a closer view of the parts handled during the project. The photograph does not establish the final part number or installation status of every seal.

The Viking VGSU161 parts catalog distinguishes the cooktop surface, control panel, burner bases, caps and ignition components. For example, it lists B2102872 as the stainless cooktop surface and PE040057 as the stainless/black control panel. Identifying the complete model helped keep those separate restoration decisions organized. Current availability and suitability still have to be checked for the individual appliance.

Reference: Viking VGSU161 model parts catalog. Catalog numbers identify components; they do not confirm parts installed on this job.

Restoring a cooktop for a chef

This restoration was for a chef, so the condition of the cooking surface mattered at the pan as well as at the burners. The client reported that oil in pans tended to collect toward the downdraft and asked for the cooking surface to be leveled so oil could spread more evenly.

That concern brought the stainless surface and cookware support into the restoration discussion, alongside burner and ignition service. The project record preserves the reported symptom and leveling request; it does not include a final level reading or an oil-spread test.

Ignition service was a separate work item

The project history includes a later request for the correct spark module for VGSU161-6BSS, followed by correspondence identifying spark-module replacement as a separate part of the work. The model catalog lists PA020042 as its spark module.

That catalog reference establishes a model-specific part listing, not proof of the exact module installed on this job. The service record also does not describe a final ignition test on each burner. We therefore report the replacement without adding an unsupported claim about repeated clicking, an electrical measurement or a particular failure mode.

Control markings required their own restoration decision

The control-panel work involved more than polishing the stainless steel. Loss of the printed markings prompted research into a replacement panel and ways to reproduce the original graphics. The research included black laser marking and accurate alignment with the original positions.

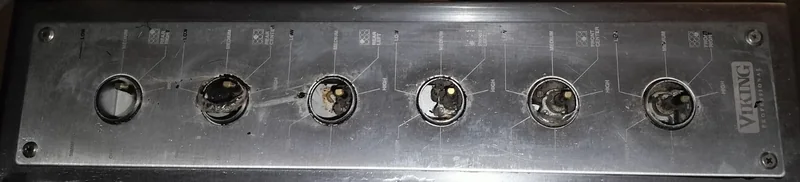

Those options remained part of the planning record. The recovered photos show the control strip with its knobs removed and patchy markings still visible, but they do not establish which lettering method was ultimately used. No laser-engraving result is claimed here.

Original service photographs

These original photographs document burner parts laid out for the restoration, teardown details, a retaining ring and the control-panel condition. They show the process rather than a verified before-and-after sequence or final operating test.

Full size

Full size

Full size

Full size

Full size

The downdraft had a separate identity and fitment problem

The ventilation research identified a VPIV1600 blower and focused on the VIPR160 downdraft, with VIPR161SS donor options also considered. The blower model and the retractable downdraft model refer to different parts of the ventilation system.

The search expanded to lift motors, controls, donor units and alternative downdrafts. A March estimate request specifically included restoration, purchasing a donor and adapting the fit. Similar overall width was only one consideration: the installation also involved the available cabinet space, countertop opening, control location and duct connection. Viking’s downdraft installation literature treats these as separate checks.

Later correspondence refers to completed downdraft work. The exact donor model, installed lift or control parts, and any countertop modifications are not established in the available record. The Thermador and Wolf models discussed during shopping were comparison candidates, not confirmed installed equipment.

Background reference: Viking VIPR161-family downdraft installation literature. This is not a fitment or blower-compatibility confirmation for VIPR160.

What the completed case establishes

The technician confirms that the cooktop was restored and all burners were replaced. The project record also identifies spark-module replacement and downdraft work. The archived photos add useful evidence of the equipment and disassembly stage.

The final gas-leak test results, individual burner operating checks and downdraft performance measurements are not documented here. This case does not claim a measured airflow increase, a specific pressure-test result, a factory-new finish or a verified before-and-after transformation.
