FRITSCH ROLLFIX 300: Belt Wear and Roller-Gap Repair Planning

The supplier exchange asked for actual belt measurements, material and underside guides. That is useful evidence of why a familiar model name does not complete the parts order. Table length, belt construction and fitted guide details all matter.

The available FRITSCH ROLLFIX basic parts catalog distinguishes belt materials and table lengths. It is useful for identifying a candidate, but its applicability must be checked against the individual ROLLFIX 300 and machine configuration. A catalog entry is not proof that a belt is installed or will fit.

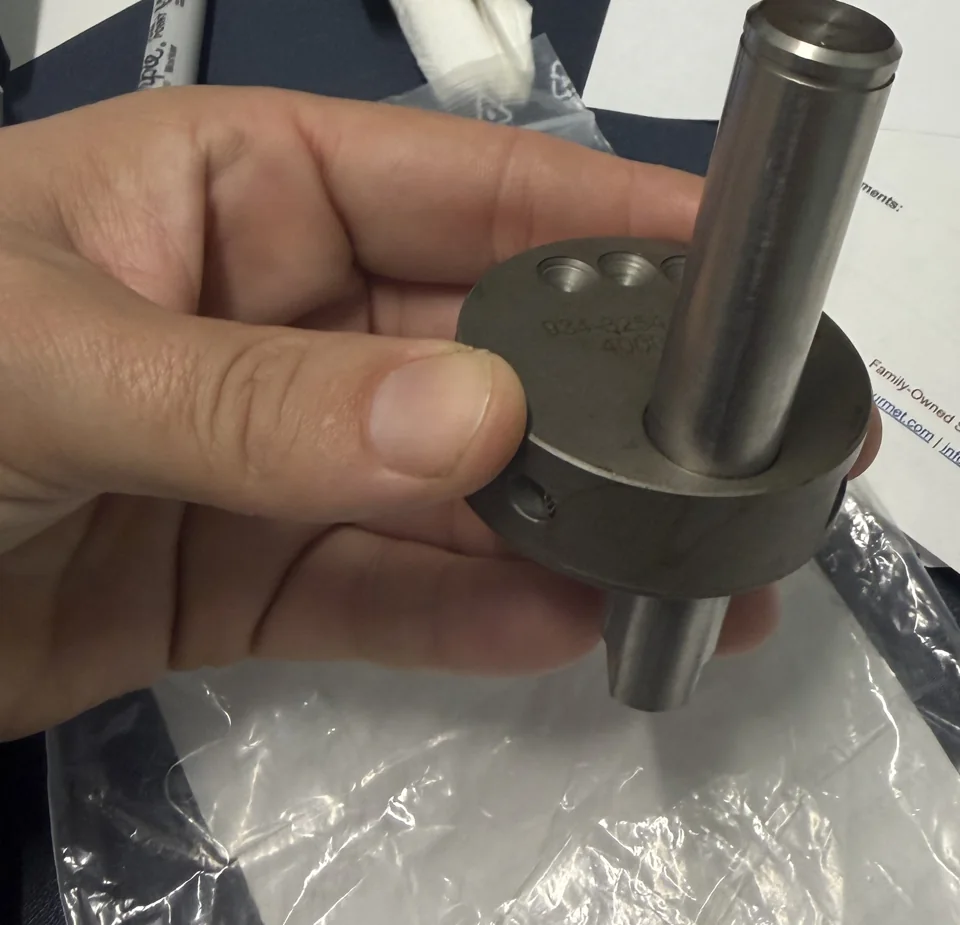

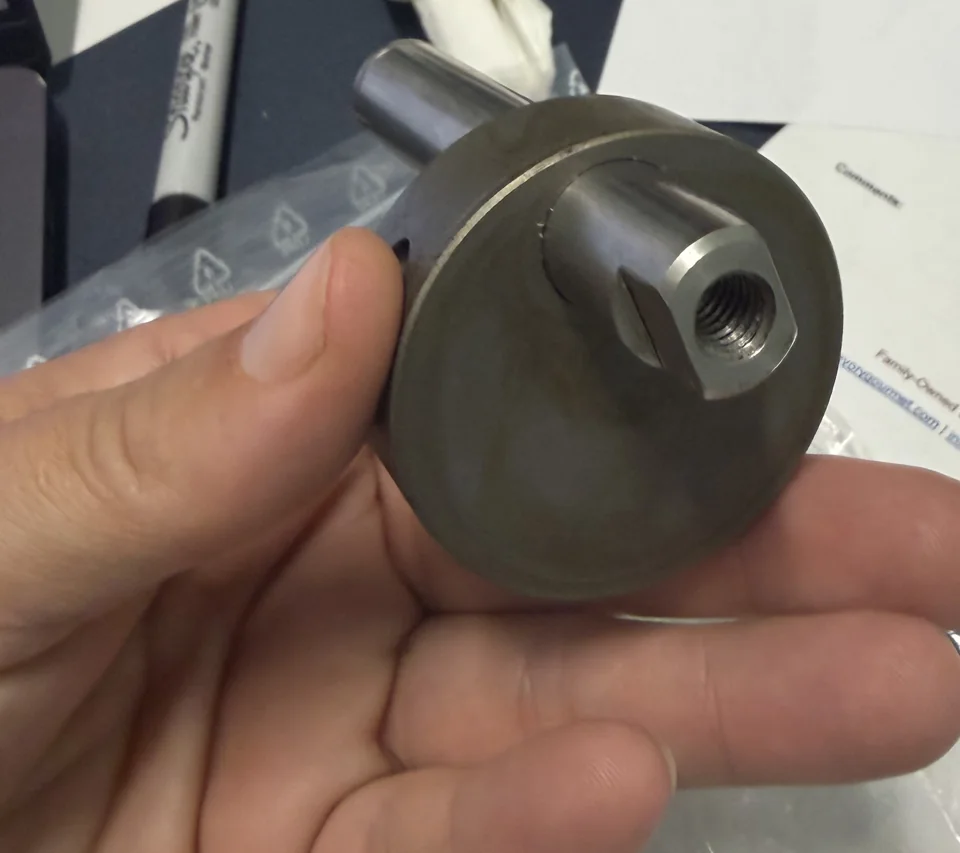

A customer-supplied cam was part of the proposed repair. The sourcing discussion also included an index ring and retaining bush. Their presence in the request does not establish that each part was defective.

The technician should inspect the adjustment assembly and its movement before choosing replacements. A new cam cannot by itself correct damaged mating surfaces, incorrect assembly or another source of lost adjustment. Exact measurements and the machine-specific parts drawing guide that decision.

The proposed work combined belt replacement with cleaning, model-appropriate service of the adjustment mechanism, tracking/alignment and functional checks. The purpose was to address both the visible wear and the process that could repeat it.

Actual alignment and tension settings must come from the matching machine documentation. The reviewed parts catalog is not a service procedure, so this guide does not invent a tension value or adjustment sequence. Before production resumes, the work should be checked in both intended conveyor directions with guards and controls restored.

Send the full machine identity, table arrangement, clear belt-edge photographs, and measured belt dimensions if already available safely. Include whether the problem changes with direction, gap setting or dough load.

Keep supplied replacement parts and their labels available. Their compatibility and condition can then be assessed before disassembly. This case records the planned repair and sourcing decisions; it does not present an unverified completed overhaul.
