Commercial equipment care · San Jose
How Low Oil Led to an Avantco Meat Slicer Gearbox Failure
By Ruslan Kraynov, KONGRA LLC · Field case and maintenance guidance ·
A commercial meat slicer needs both sanitary cleaning and mechanical maintenance. In a San Jose service call, KONGRA inspected an Avantco 177SL713A whose automatic carriage made abnormal noise throughout its travel. No oil was visible in the sight glass. The technician diagnosed gearbox failure caused by inadequate lubrication.
For a restaurant, cafe or deli, the lesson is practical: make oil-level checks part of the equipment routine, address a low reading promptly and investigate new mechanical noise before a shift is interrupted.
Check the oil level, use the correct lubricant and respond to abnormal drive noise before mechanical damage progresses.

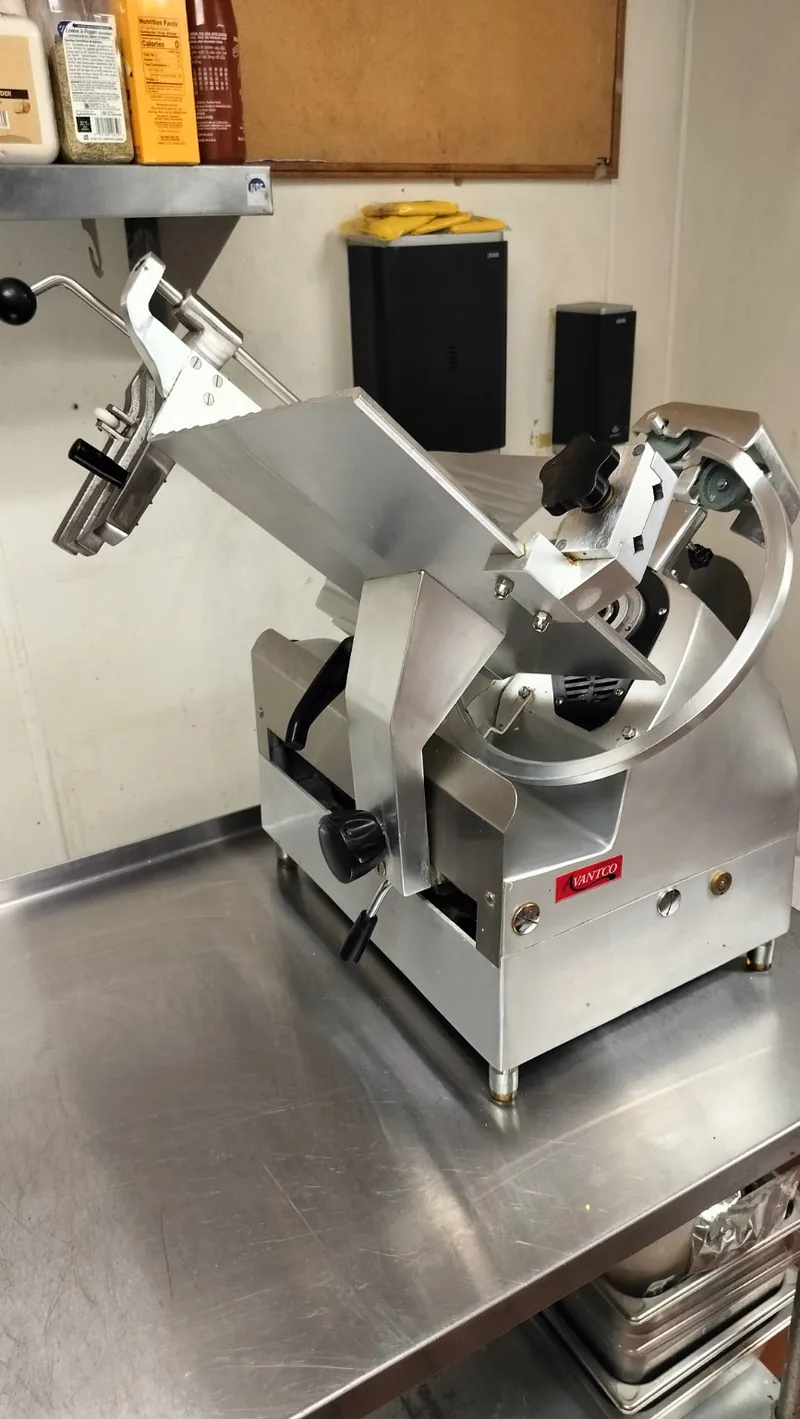

The Avantco 177SL713A during inspection, with the blade removed for service.
The San Jose service call
The complaint centered on the platform moving back and forth in automatic mode. The noise continued through the full stroke. With the machine switched off, moving the carriage by hand was quiet.
That difference helped focus the inspection on the powered carriage drive. It was a useful diagnostic clue, although noise alone cannot identify a failed component. The service findings in this case were an oil level not visible in the gauge and a failed automatic-carriage gearbox.
The recommended repair is gearbox replacement, lubrication-system service and a check of the surrounding drive components. Replacement and follow-up testing were still pending at the time of this inspection.

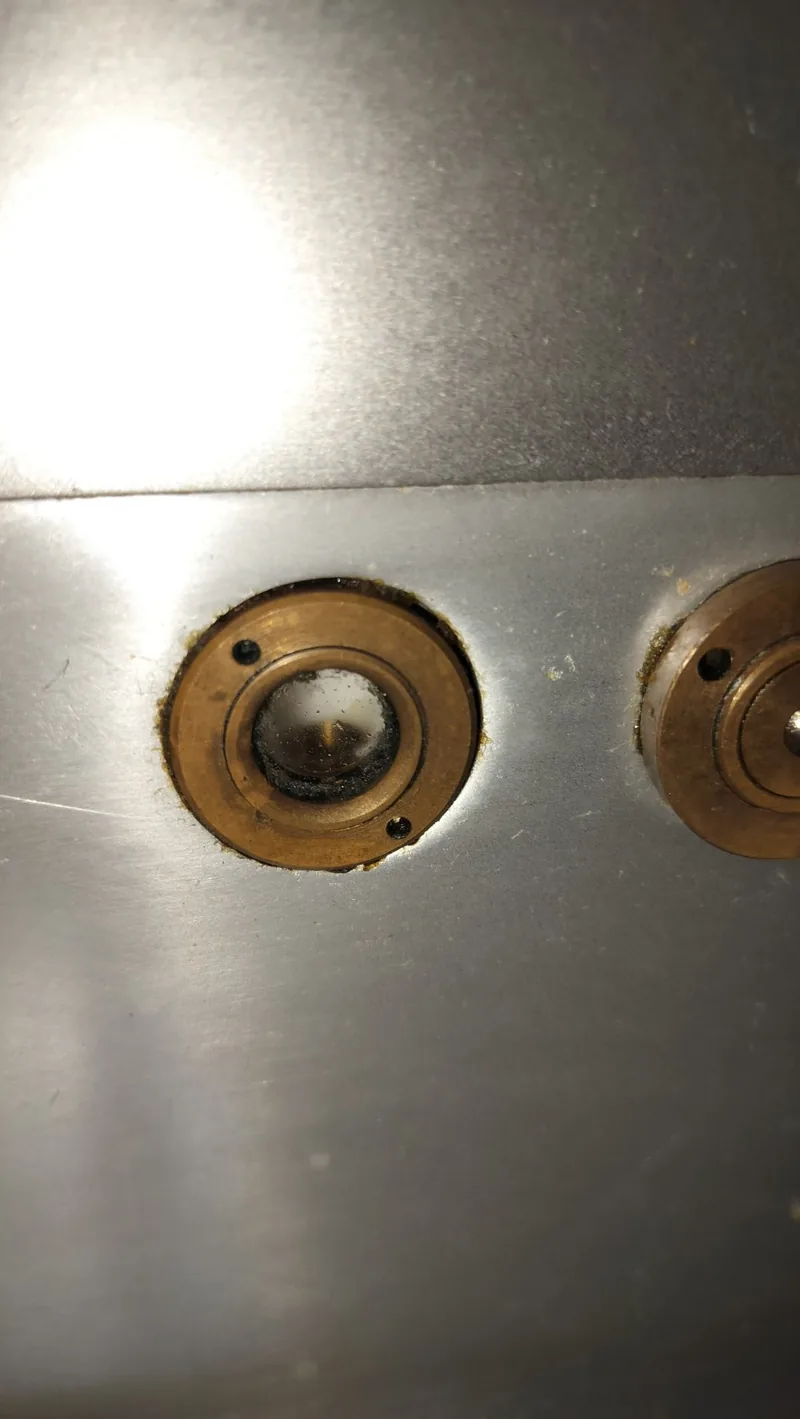

The oil-level sight glass. No oil was visible during the technician's inspection.
Why low oil can damage a slicer gearbox
A lubricant film separates loaded moving surfaces. When lubrication is inadequate, those surfaces have less protection against friction and wear. Continued operation can damage gears and bearings and eventually make a drive noisy, unreliable or unable to move the carriage.
SKF explains the role of this protective film in gears and bearings. Checking lubrication while a machine still runs can help identify a service need before wear progresses.
Technical background: SKF on lubrication and wear.
Check the oil gauge and the correct lubrication points
The Avantco SL612A/SL713A user manual covers the gearbox oil gauge on page 8. Figure 27A identifies the viewing window and Figure 27B the fill port. The manual calls for replenishment when the level falls below the indicator.
It separately describes a side-shaft lubrication port in Figure 28 and lubrication of the carriage and pusher guides. These points serve different maintenance needs. Spraying the exposed guides does not replace checking the oil gauge.
Confirm the lubricant specification and procedure for the exact machine before adding oil. The cited gauge instructions do not specify an oil viscosity. A general-purpose spray or cooking oil should not be substituted for a verified lubricant.
Model reference: Avantco automatic meat slicer user manual, page 8.
Warning signs that need attention
- New grinding, rattling or persistent mechanical noise during carriage travel.
- Jerky movement, hesitation, reduced travel or a stalled carriage.
- A low or unreadable oil level, oil leakage, or a level that repeatedly drops.
Take a slicer with abnormal drive noise out of service for inspection. Do not repeatedly run a noisy mechanism just to see whether it clears up.
What commercial meat slicer maintenance should include
- 1.Make checks accountable. Assign a trained operator to record the oil-level reading and report changes. Set the inspection interval around the manufacturer's instructions and the equipment's workload.
- 2.Keep lubrication points distinct. Identify the gauge, fill port, shaft lubrication points and guides on a model-specific service checklist.
- 3.Investigate oil loss. Have a technician check recurring low readings, leakage and the lubrication system. Repeated topping-up can conceal an unresolved problem.
- 4.Inspect the complete drive. Include the chain, sprockets, bearings, fasteners, alignment and carriage motion in professional maintenance.
- 5.Maintain the cutting and food-contact components. Include cleaning, sanitizing, blade and sharpener condition, guards and safe operation in the maintenance plan.
Internal inspection and service should be performed by a qualified technician with power isolated before opening the housing.

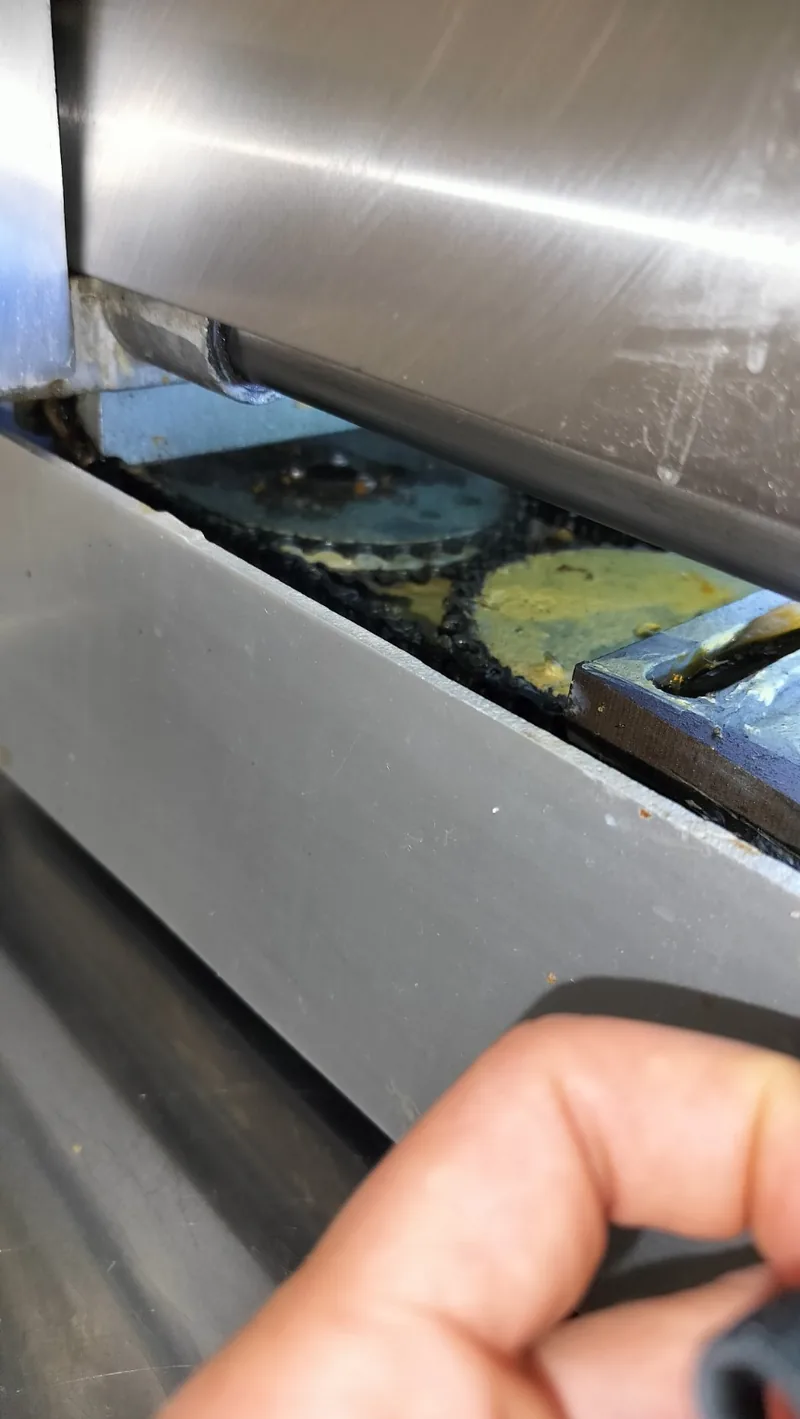

The opened housing shows the carriage-drive chain and sprockets; the gearbox internals are not visible in this photo.
Why adding oil will not fix a failed gearbox
Adding oil is preventive care when the mechanism is still serviceable. It cannot rebuild worn or broken components inside a failed gearbox. Once damage has occurred, the repair has to address both the failed assembly and the lubrication condition that contributed to it.
For this case, the proposed scope includes replacing the gearbox, checking the lubrication system, replenishing the verified lubricant, inspecting the associated carriage drive and testing manual and automatic operation after reassembly. Oil loss and any additional damage need to be addressed before the machine returns to use.
Common questions about slicer maintenance
Does a quiet manual carriage mean the slicer is healthy?
No. Hand movement with the power off does not test the powered drive under its normal load. This unit moved quietly by hand but had a problem during automatic travel.
Is cleaning the slicer enough maintenance?
Cleaning is essential for food-contact surfaces. The machine also needs the mechanical checks and lubrication specified for its model.
Can every meat slicer use the same oil?
Do not assume so. Lubricant selection depends on the machine and lubrication point. Confirm the correct specification before servicing it.
Start with the model number
A clear model-label photo helps identify the appropriate documentation and replacement assembly.

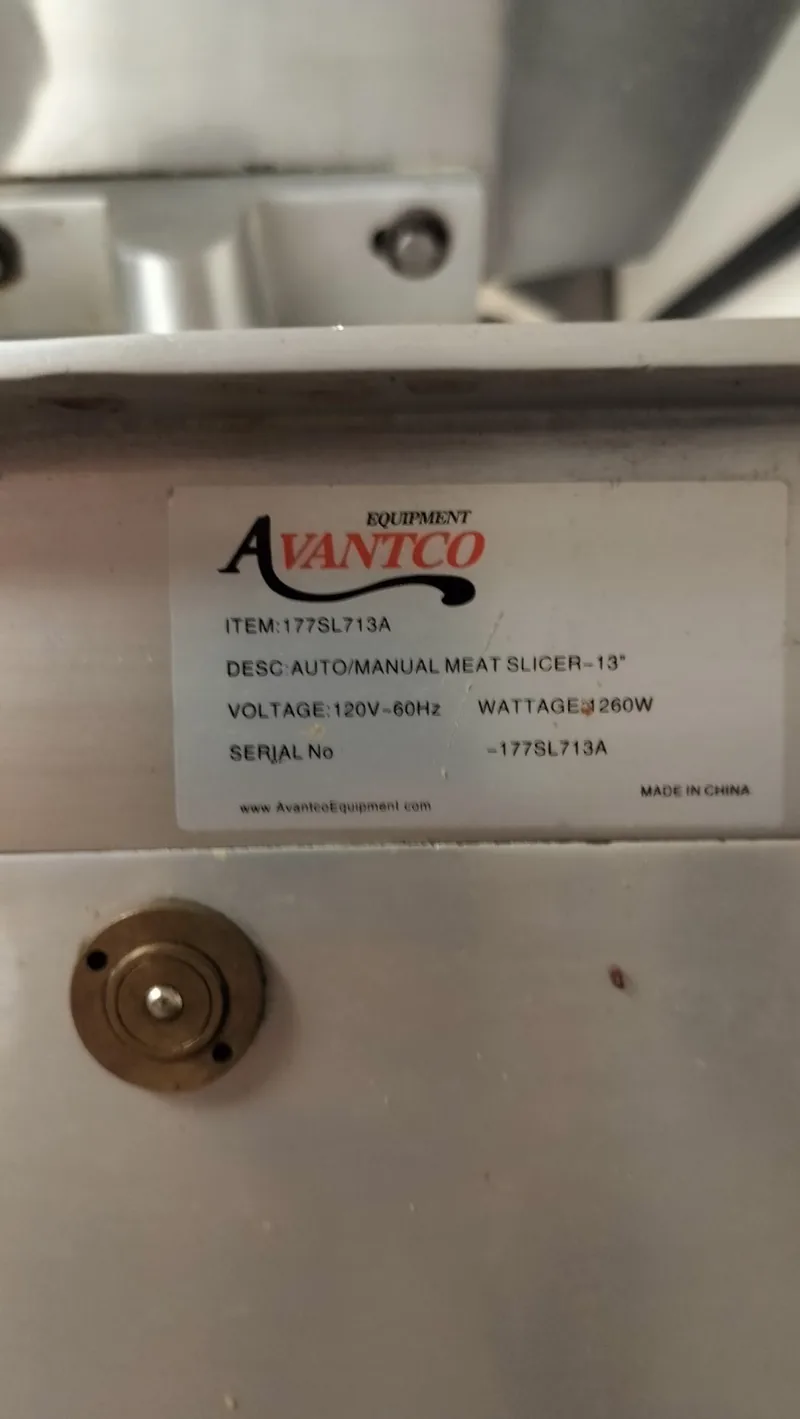

The equipment label identifies the model as Avantco 177SL713A.
